MadGraph example
[1]:
import hepi
print(hepi.__version__)
import smpl
import numpy as np
import hepi.madgraph as mg
import hepi.util as util
import matplotlib.pyplot as plt
mg.set_path("/opt/MG5_aMC_v2_7_0/")
print (mg.get_path())
0.1.4.42+dirty
/opt/MG5_aMC_v2_7_0/
[ ]:
No on-shell subtraction through madstr
[6]:
params = [
"mastercode_with_gm2.in",
]
pss = [
(1000011,-1000011),
]
for pa,pb in pss:
for param in params:
i = hepi.Input(hepi.Order.NLO,13000,pa,pb,param,"cteq6l1","cteq66",1., 1.)
li = [i]
li = hepi.mass_scan([i],pa, np.linspace(100,1000,7+8))
mg_dl = mg.run(li,skip=False,madstr=False)

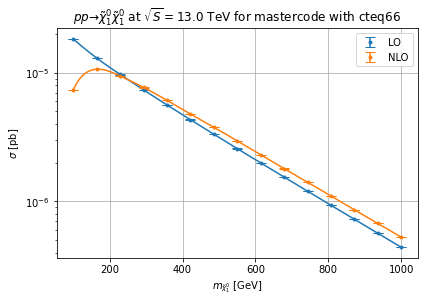

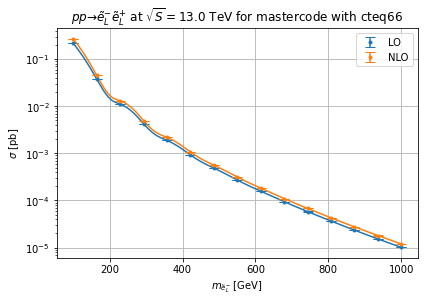

hepi.mass_plot(mg_dl,"LO",pa,logy=True)
hepi.mass_plot(mg_dl,"NLO",pa,logy=True)
hepi.title(plt.gca(),li[0],scenario="mastercode")
Running: 15 jobs
./output/4bec207f684440baa1701f222feffd61ef9ed63a626da77e10441653c9a42084.out
No module named madgraph
